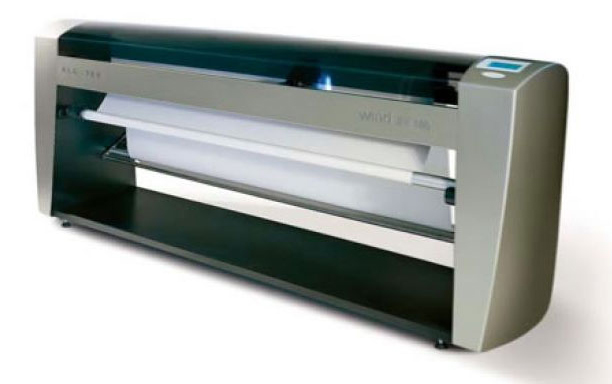

Plotter ink-jet 4-Head InvenJet PowerBrain Series DOT 4H

Ink-jet plotter (raster) with 4 HP printheads recommended for medium and big companies, manufacturers of garment, upholstered furniture and textiles. Plotters are available with a max. print width 183cm and 223cm depending on the model. Maximum plotting speed to 180 m2/h.


  • very light paper take-up reel made of an alloy with a very simple and innovative paper start grip and paper release system after plotting is finished – assures fast removing of finished markers and re-start of new plotting job
  • paper feeding reel is placed in front of the plotter – easy paper reel installation
  • paper feeding system with two independent paper feeding reels eg with two different paper widths
  • output of plotted paper with paper rolling on take-up reel or with a system of free paper take-up
  • rolling of paper with printout on top or on bottom (easy inversion of paper take-up rolling direction)
  • integrated operator’s panel with a mini-keyboard and LCD screen
  • 20% reduction of ink consumption in comparison to standard HP-45 cartridges, in case when genuine PowerBrain printheads are used, with an additional monitoring of the remaining ink level. Lower cost of PowerBrain cartridges
  • possibility to print selected elements (notches) of the printout in different eg red color
  • modern firmware with an effective plot queue support and extended set of additional functions
  • available in 2- or 4-head version. Possibility to upgrade from 2-head to 4-head version
  • highest plotting speeds (max. 85m2/h and 180 m2/h) accompanied by highest quality and stability of callibration
  • automatic plotting stop before paper end, with a sound signalization
  • plotting speed is adjustable (4 levels of carriage movement linear speed: 0,5 1,0 1,5 2,0 m/s)
  • ability to work only with one cartridge in 2-head version and 1, 2 or 3 cartridges in 4-head version
  • cleaning and parking zone prevents ink drying and nozzle blocking after a longer perion od plotter’s inactivity
  • compact, stiff and light construction with a pleasant and modern look and very silent operation
Model: InvenJet PowerBrain DOT 180 4H InvenJet PowerBrain DOT 220 4H
Max. plotting width 183 cm 223 cm
Plotting speed 160m²/h 180m²/h
Type of printhead 4 x HP45B (black) and compatible or genuine PowerBrain
Communication USB 2.0 + LAN option
Paper feeding front reel with max diameter of 20cm / weight of 30kg
Paper take-up to the paper take-up reel or free paper take-up
Paper weight > 20 g/m2
Noise level < 40 dB
ABS system adjustable paper tension with brake of paper feeding
Supported data formats HPGL, HPGL-2, ISO, STD, AAMA-ASTM, DXF
Operating system Windows 10/ W8/ W7/ Vista / XP / support of 32 and 64-bit version
Dimensions L. 245cm, W. 50cm, H. 111cm L. 285cm, W. 50cm, H. 111cm
Voltage/Power 100-260V auto-switch / 50Hz / 70W
Weight 123 kg 140 kg
