Basic semi-automatic spreading machine with individual drive system for non-elastic materials. Machine equipped with manual fabric tension control system. Machine without conveyorized cradle for unwinding fabric. Machine controlled through PLC with operator control panel.

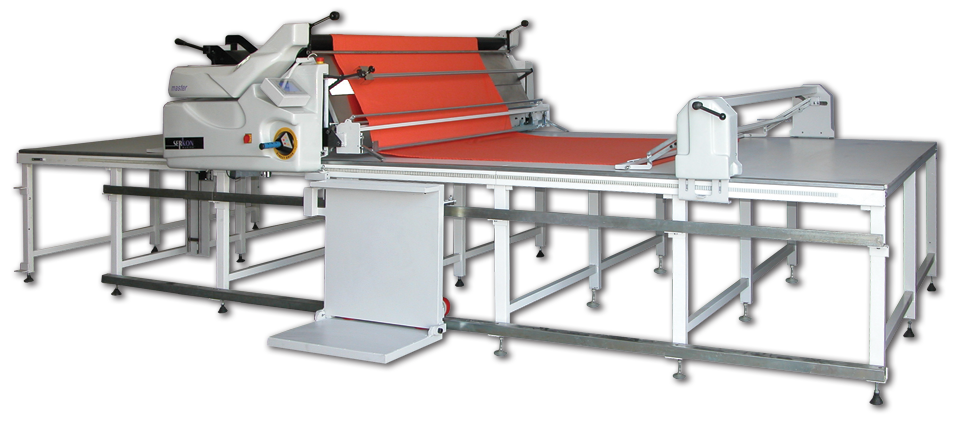

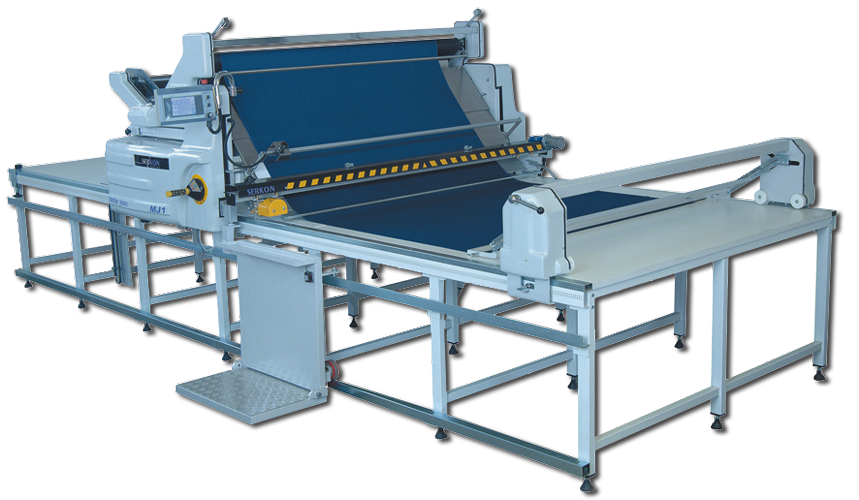

InvenSpread FW1 Semi-automatic spreading machine
User advantages:
- Significant increase of possibility of spreading and unwinding of textile materials
- Edge control system ensures highest quality of spreading process
- Repeatable quality of spreading every layer length– limited only by length of the spreading table
- No limit of the marker length like in manual spreading
- One man operation – cutting cost at increased output
| InvenSpread FW1 | |
|---|---|
| max spreading height with cutting unit (cutting of subsequent layers) | 250mm |
| max spreading height with zig-zag unit | 220mm |
| max spreading height with tubular unit | 200mm |
| max working width | from 160 to 340cm |
| max diameter of fabric roll | 500mm |
| max weight of roll | 120kg |
| max spreading speed | 80 m/min. |
| voltage and power | 2kW/ 220-240V |
